LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen

Name: LED Video Monitoring Wall COB P06 Seamless Splicing Mini Indoor LED Display Screen
Brand: CONWIN
Price: 1 USD

China LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen wholesale

Brand Name : CONWIN

Model Number : DX-0.62

Certification : CE,ROHS

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000sqm/month

Delivery Time : 5-8 working days

Packaging Details : wooden box or carton

Pixel Pitch : 0.62mm

Pixel Density : 2560000dots/㎡

Mtbf : >10000hours

Operating Temperature : -20℃~ +60 ℃

Module size : 150x168.75mm

Scan Method : 1/30

Led Panel Size : 600x337.5mm

Housing Color : Black

Leds : SMD 3in1

Lifespan : 100000h

Contact Now

Ultra-Thin HD COB P0.6 P0.7 LED Video Monitoring Wall Seamless Splicing Cob mini Led Indoor Display Screen LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen

LED Video Monitoring Wall COB P0.6 Seamless Splicing Mini Indoor LED Display Screen

What is COB LED Display?

COB (Chip on Board) is a kind of LED display packaging technology. LED light-emitting chips are directly bonded to the module board with high precision and connected to driver components on the module board through special media for overall protection of the light-emitting surface. COB packaging eliminates the two key procedures of turning LED chips into lamp beads and reflow soldering as compared to standard SMD packaging.

Advantages of COB LED Display

This new and unique technology has a number of advantages over existing technologies such as SMD and DIP LEDs. Due to the small size of the LED chip, the COB system allows for a much higher packing density than SMD (SMT), the result being a more compact array giving better uniformity and higher intensity even at a close distance and greater heat dissipation for better stability, reliability, and lifespan.

COB chip and pin legs are sealed, resulting in better airtightness, higher resistance to external forces, and a smoother, seamless surface.

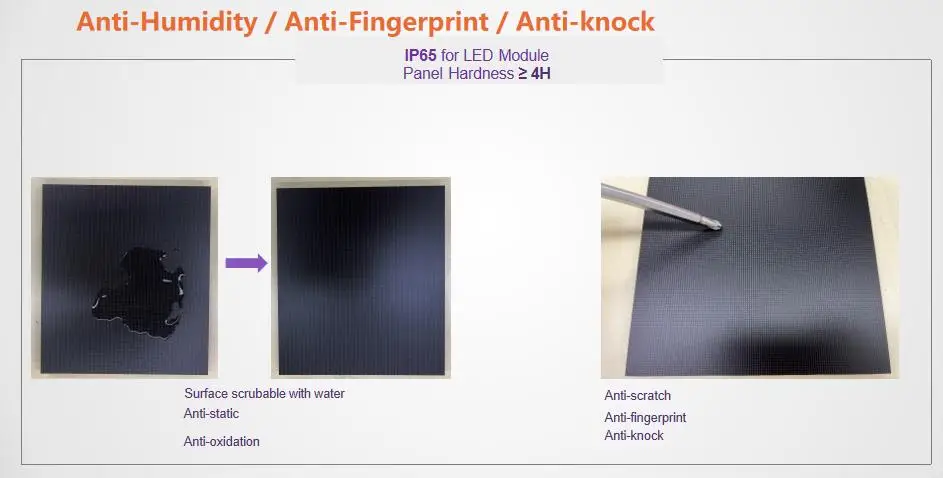

COB has a much higher level of protection against moisture, electrostatic discharge (ESD), damages, and dust with surface protection rated IP65. COB is an integrated package with even light distribution, and the smooth surface makes images appear softer and friendlier to the human eye.

Superior Durability : COB is better at withstanding collisions and the effects of Oil, Damp, Water, Dust, Oxidisation, and dust.

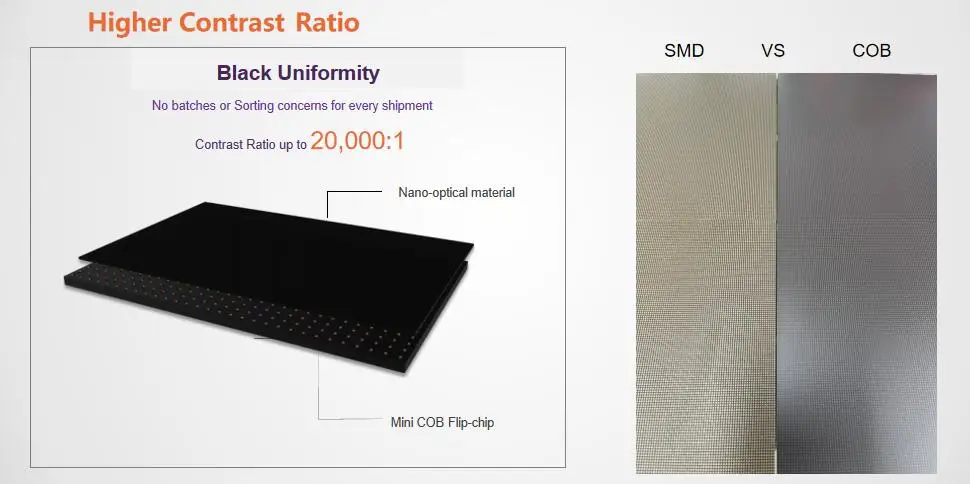

High Contrast Ratio: The contrast ratio of LED displays is an important parameter that determines how clear, vivid, and colorful the image is .COB can reach 15,000 to 20,000 static contrast ratio and up to 100,000 high dynamic contrast ratio.

COB LED Screen Video Wall 16:9 Golden Ratio

Standard 27.5″ Size FHD/4K Pixel to Pixel Resolutions

1- 16:9 Ratio Cabinet with 600x337.5mm dimension
2-150x168.75mm Standard Size Module
3- The LED modules can be removed by tools on front side only 5 seconds
4- Die-casting Aluminum Cabinet Quality, but price same as iron cabinet
5-Hign refresh rate ,High contrast rate, and 256-grade automatical brightness control

6-Applications: TV studio hall, military command centers, control centers, clubs, video conference center, banquet hall, shopping mall, and star hotels etc.

Product Description

Module	Module size	150x168.75mm
	Pixel pitch	COB-- 0.62mm
	Pixel density	2560000dots/㎡
	Led specification	SMD1010
	Module resolution	240x272 pixels
	Ave power	25w
	Module weight	0.2kg
Cabinet	Cabinet size	600x337.5mm
	Quantity of module	8pcs
	Module power supply	5V40A
	Max power	600w/㎡
	Ave power	42w/㎡
Screen	Drive type	1/30 scan
	Refresh frequency	3840Hz-7680HZ
	Brightness	>=600cd
	Life span	>100000hours
	Grey level	≥16bits

Detailed Images
